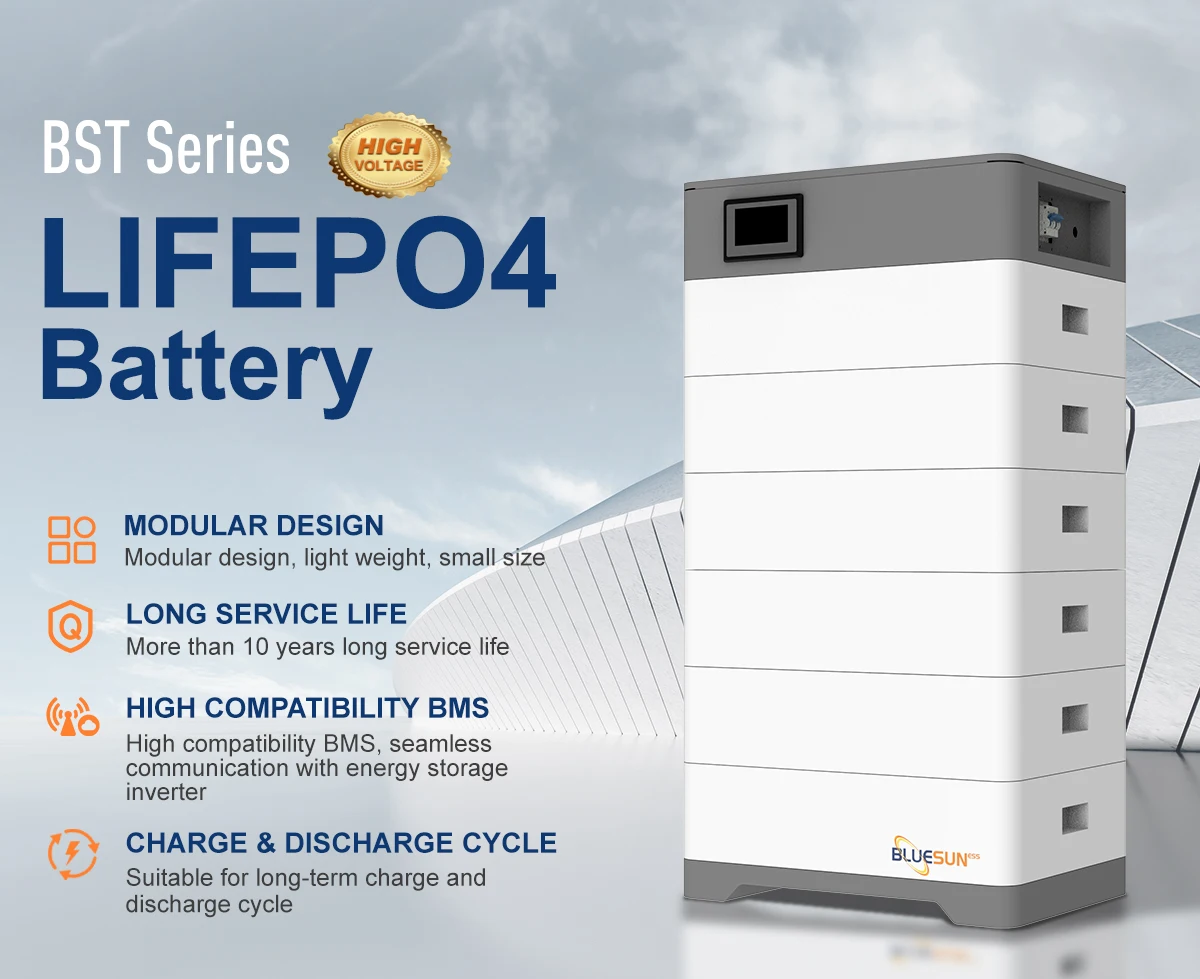

Products Description
LiFePO4 batteries are a type of lithium battery built from lithium iron phosphate.For things like solar energy systems, RVs, golf carts, bass boats, and electric motorcycles.

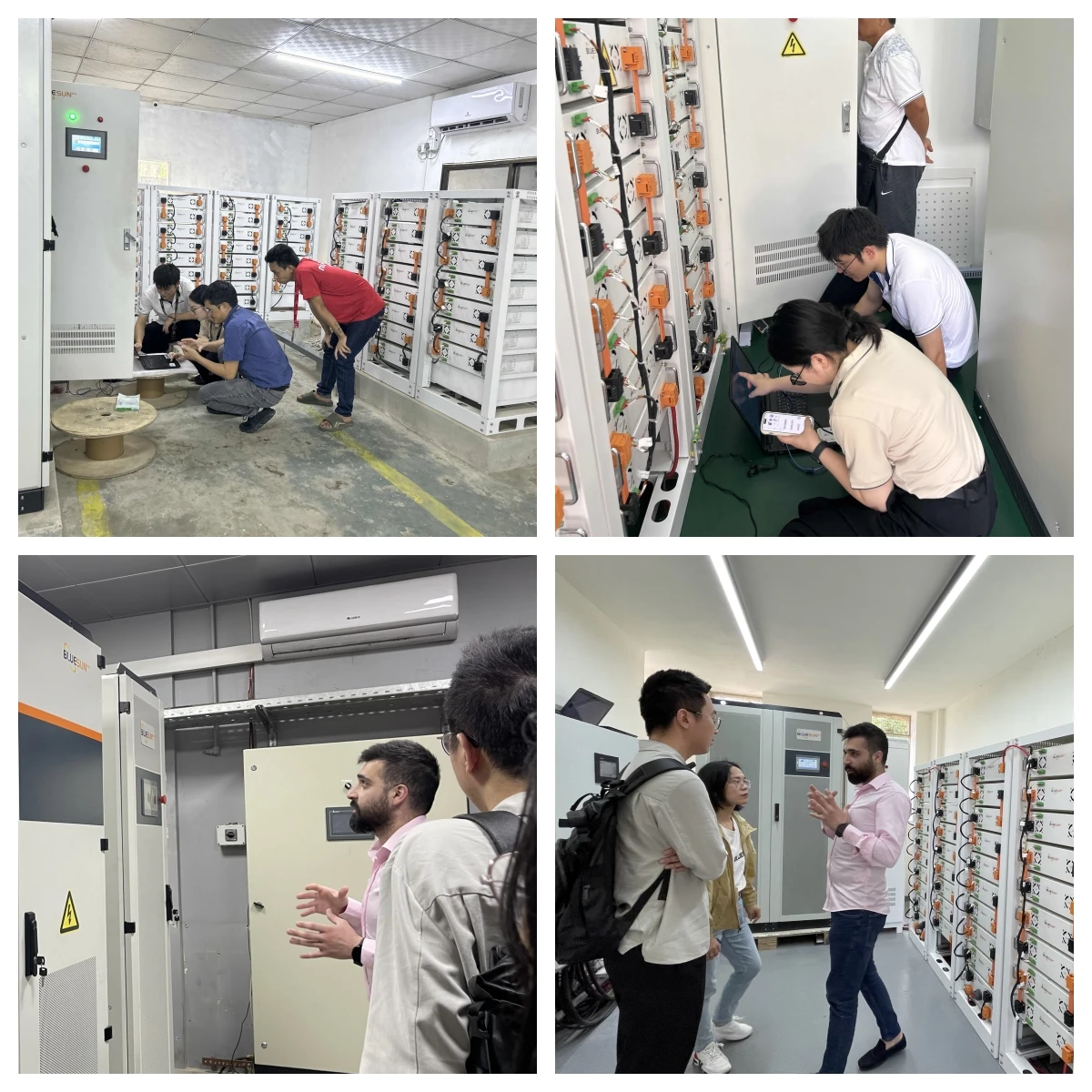

Technical Service Team
Product Paramenters
|
MODEL
|
BST-15.0HV
|
BST-20.0HV
|
BST-25.0HV
|
BST-30.0HV
|
||||
|
Battery Type
|
LiFeP04(LFP)
|
|||||||
|
Nominal Voltage(V)
|
153.6V
|
204.8V
|
256.0V
|
307.2V
|
||||
|
Nominal Capacity(KWH)
|
16.28KWH
|
21.7KWH
|
27.13KWH
|
32.56KWH
|
||||
|
Usable Capacity (KWH)
|
14.65KWH
|
19.53KWH
|
24.41 KWH
|
29.30KWH
|
||||
|
Design Life
|
10+Years (25 ℃/77F)
|
|||||||
|
Physical
|
||||||||
|
Dimension(mm)
|
600*400*683
|
600*400*832
|
600*400*981
|
600*400*1130
|
||||
|
Weight (kg)
|
170
|
215
|
260
|
305
|
||||
|
ELECTRICAL
|
||||||||
|
Cycle Life
|
>6000. 25°C
|
|||||||
|
Discharge Voltage(V)
|
120-144
|
160-192
|
200-240
|
240-288
|
||||
|
Charge Voltage(V)
|
168-175.2
|
224-233.6
|
280-292
|
336-350.4
|
||||
|
Charge/Discharge Current(A)
|
50A (Recommended) 100A(Max)
|
|||||||
|
Internal Resistance
|
≤30mΩ
|
|||||||
|
BMS
|
||||||||
|
Power Consumption
|
<2W (Work) < 100mW(Sleep)
|
|||||||
|
Monitoring Parameters
|

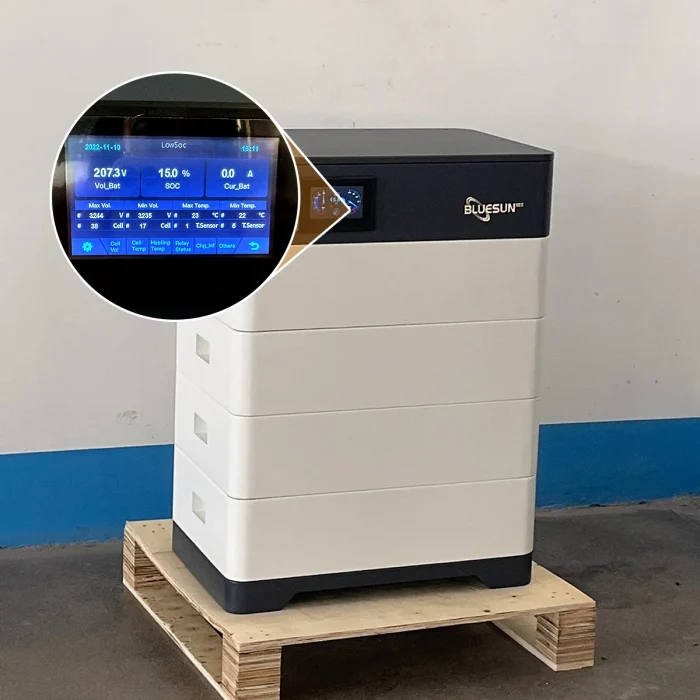

System voltage, current, cell voltage,cell temperature, module temperature
|
|||||||
|
SOC
|
Intelligent algorithm
|
|||||||
|
Communication
|
CAN/RS-485/RS-232
|
|||||||
|
OPERATION
|
||||||||
|
Operating Temperature Range
|
-10℃-50℃
|
|||||||
|
Transport or Storage Temperate Range
|
-20℃-45℃
|
|||||||
|
Humidity
|
15% – 85% (No Condensing)
|
|||||||
|
WARRANTY
|
||||||||
|
Product Warranty
|
5 Years
|
|||||||
|
Performance Warranty
|
10 Years
|
|||||||
|
More Details Please Send Inquiry to Us
|
||||||||

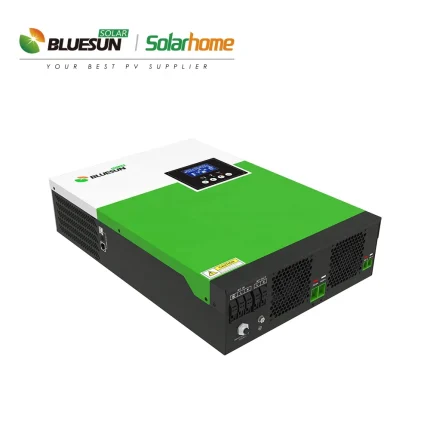

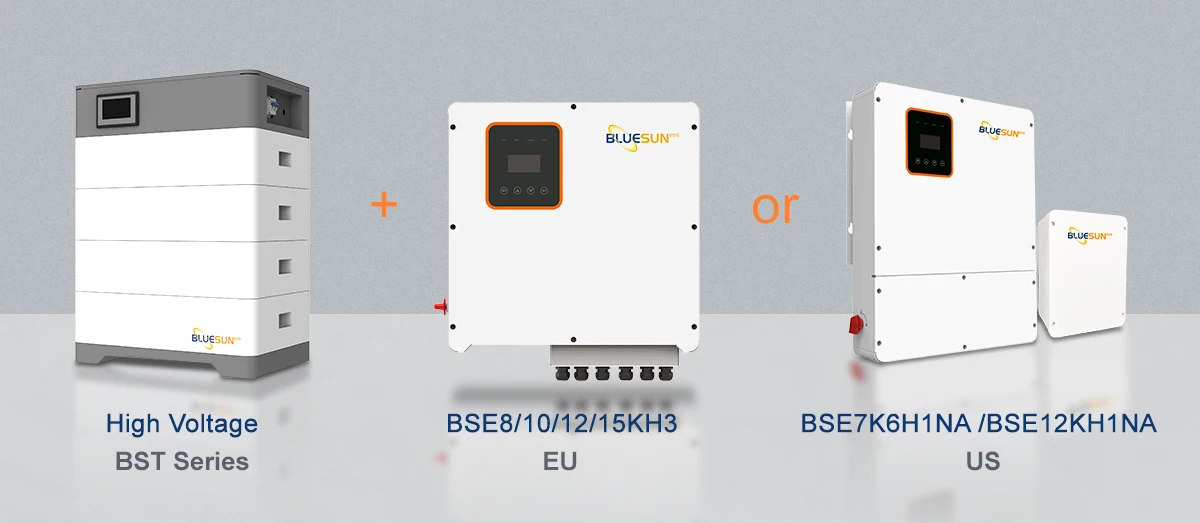

Matching Inverter
High compatibility BMS, seamless communication with energy storage inverter

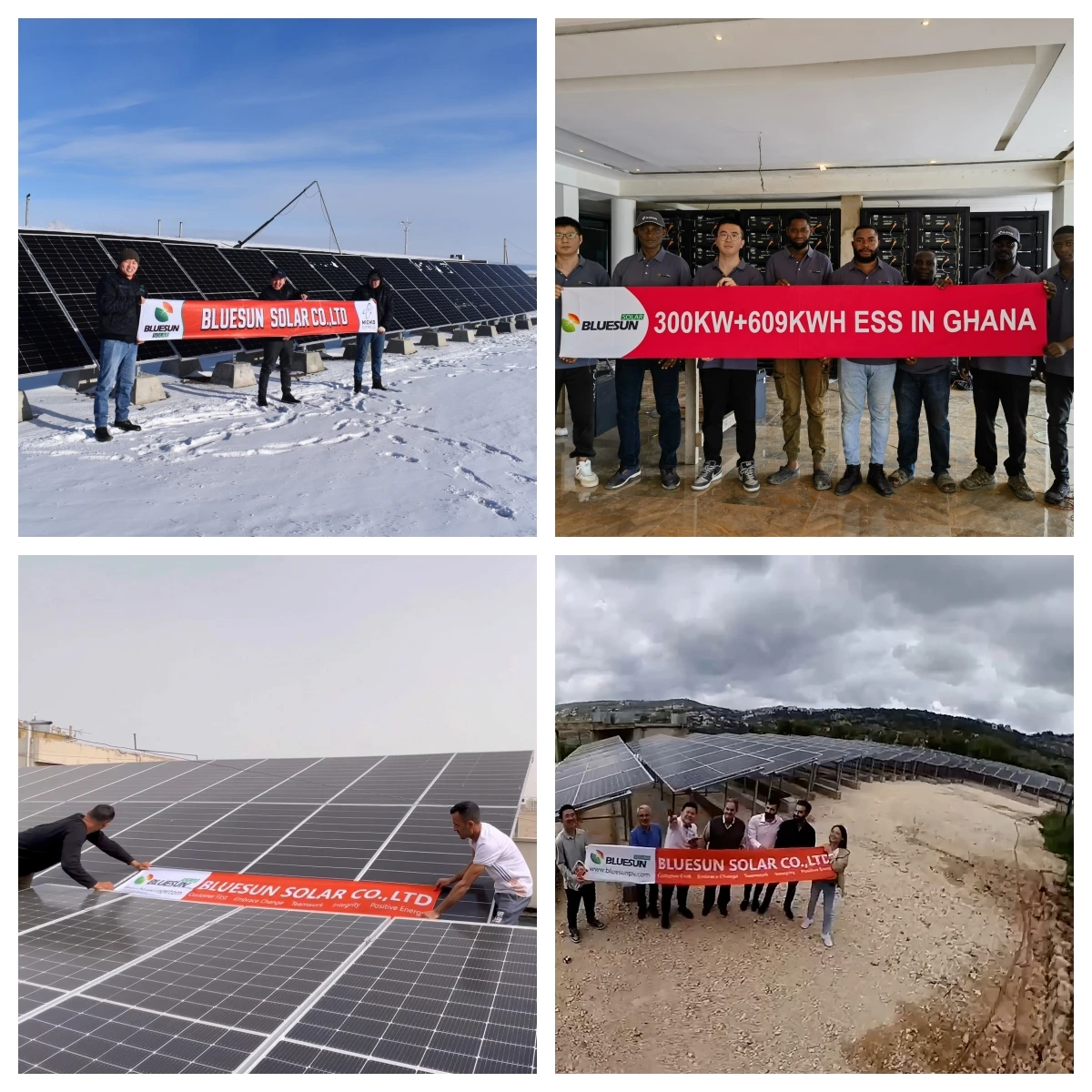

Bluesun Project
Solar Exhibition

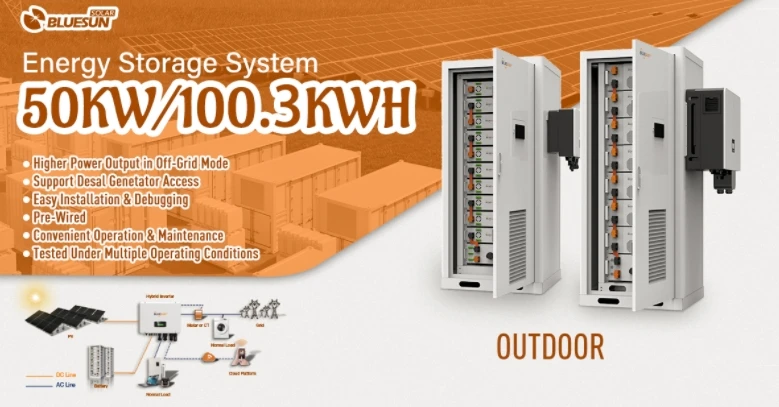

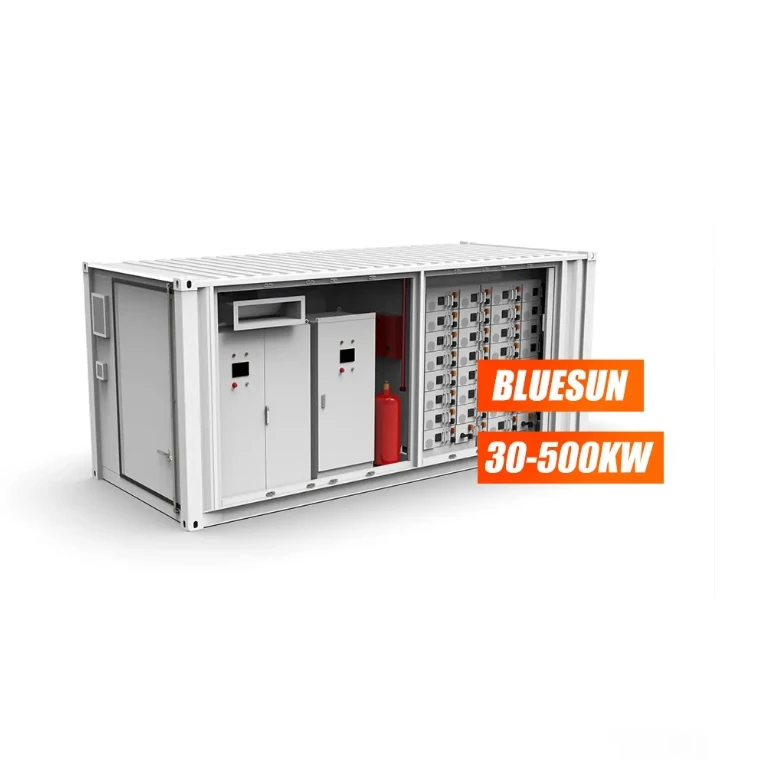

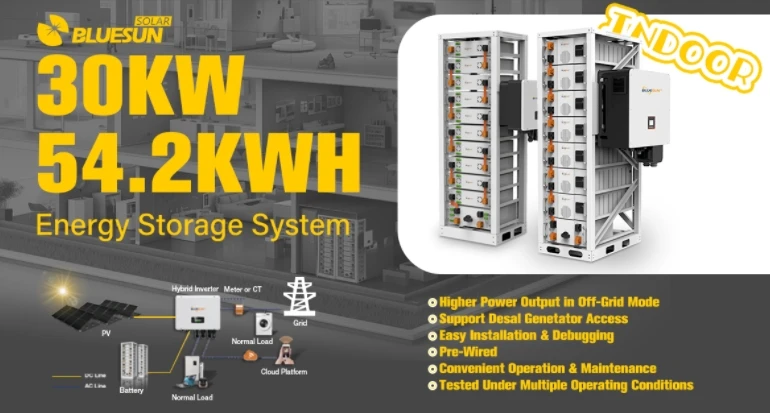

Hot sales product
